Air Cooled Screw Chiller PDF

Air Cooled Screw Chiller

Air Cooled Screw Chiller

The air-cooled chiller adopts a finned condenser, which has fast heat conduction and good heat dissipation effect without the need to provide cooling water. It can provide ice water at 5~35℃, and the low temperature type can be as low as 3℃ (the temperature difference does not exceed ±1℃), the screw compressor chiller's compressor power ranges from 40HP to 240HP, and the cooling capacity can reach 88924~581360 Kcal/hr.

Specifications Of Air Cooled Screw Chiller


Standard specificationsSCC-40ASSCC-50ASSCC-60ASSCC-70ASSCC-80ASSCC-100ASSCC-120AS
Total powerKW354656627598112
Maximum operating currentA6991121128153193220
Cooling capacityKcal/h8892411174128226180600213280242520290680
KW103.4140184206244316365
RefrigerantModelR22(R407C)
ChargeKg28354353607286
Way to controlExternally balanced thermal expansion valve
CompressorTypeSemi-closed screw type
PowerKW29.6394953658090
Start methodY-Δ
Energy adjustment range%0-33%-66%-100% / 0-25%-50%-75%-100%
EvaporatorTypesDry shell and tube type (plate exchange type)
Chilled waterM3/h18232636435060
Inlet and outlet pipe diameterInch3”3”3”4”4”4”5”
CondenserAir-cooled high-efficiency copper pipe sleeve aluminum sheet
FanTypesM3/hHigh-power axial fan
PowerKW77710101212
Cooling air volumeM3/h4000051000630008000091000105000122000
Electric power source Specification3P 380V 50HZ
Dimensions Longmm2200240024003150315041004100
Widthmm15601760200021402140189020000
Highmm2150218021802200220022002200
Unit weightKG1300162019302260242028603250
Running weightKG1390187022102420268030203460


Features Of Air Cooled Screw Chiller

  • Adopt imported compressor

  • The copper tube is welded without oxygen

  • Efficient evaporator and condenser, energy saving

  • The high-power equipment adopts multi-group compressor,

    Automatically adjust start and stop as needed

  • Equipped with communication interface, can undertake future industry 4.0

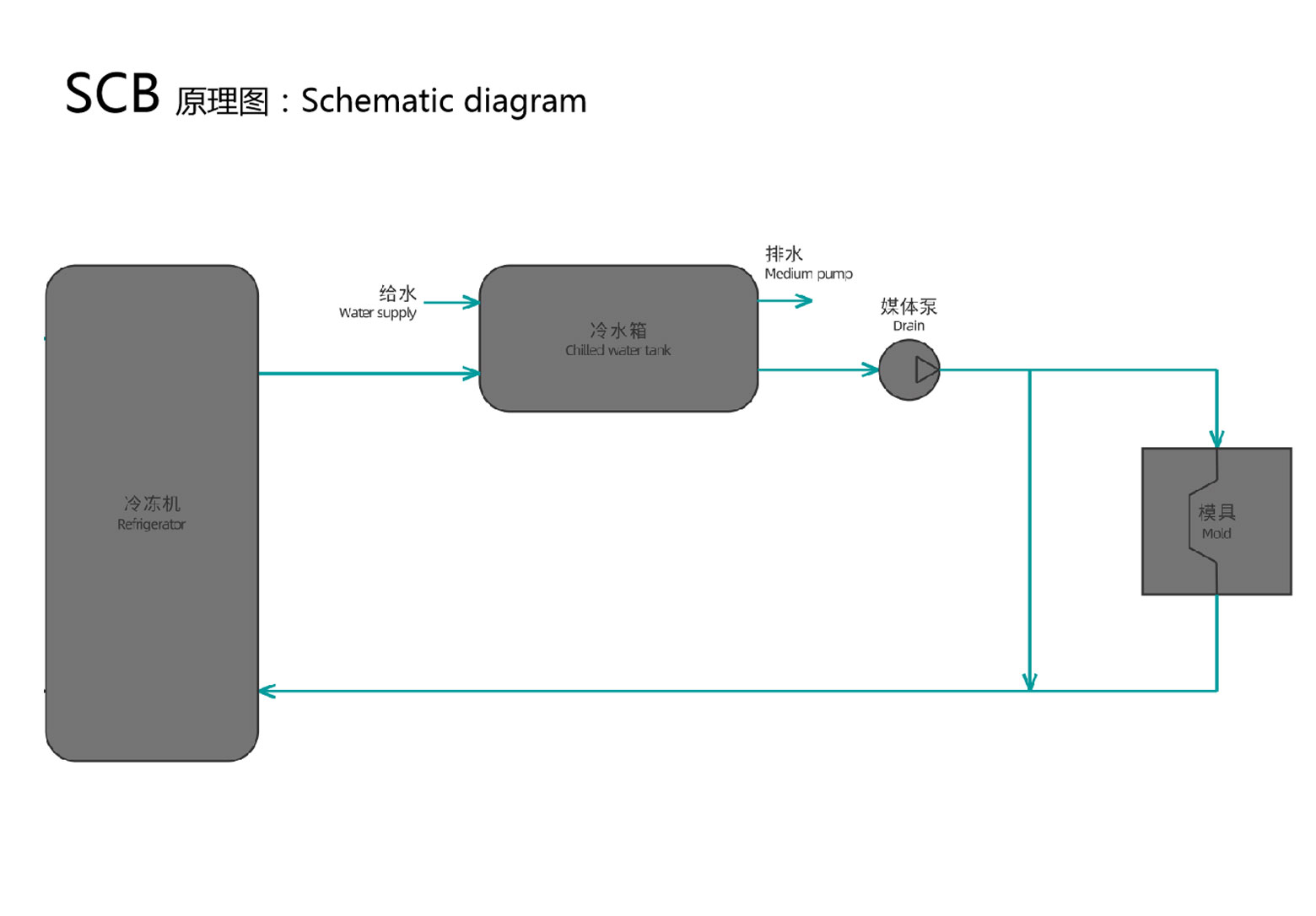

Air Cooled Screw Chiller Working Principle


Air Cooled Screw Chiller Working Principle

Air Cooled Screw Chiller Gallery

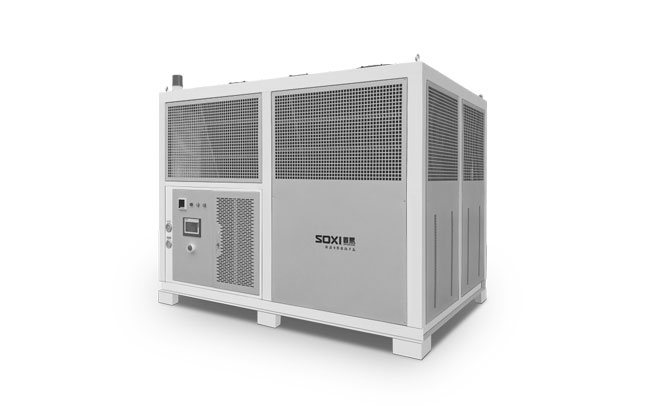

Air Cooled Screw Chiller

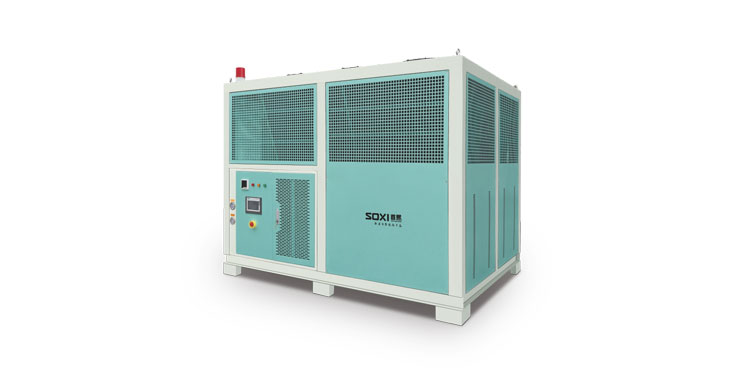

Screw Compressor Chiller
