Steam Mold Temperature Machine (Switching Control) PDF

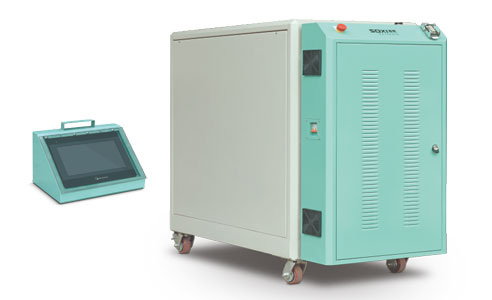

Steam Mold Temperature Machine (Switching Control)

Mold Temp Controller

Steam control mold temperature machine introduction Designed to address the quality issues of injection molded articles such as weld lines, corrugations, floats, photo-orientation, shrinkage, lack of material and stress concentration, various technical measures have been taken, including optimizing mold design (eg optimizing cavity and The layout of the waterway), optimization of the injection process (including control of mold temperature, rate of fire and pressure, as well as pressure and recharge), as well as hot runner technology, gas-assisted technology, and heat treatment technology. Despite this, these technical measures are still difficult to solve the problem fundamentally. Although the subsequent painting process compensates for the above defects, it usually leads to higher costs and scrap rates, and its production is not environmentally friendly (including benzene). As a new technology developed in recent years, the high-gloss non-melting-injection injection molding system has begun to become a new method to solve the above problems.

Specification Of Steam Mold Temperature Machine (Switching Control)


Standard specifications

SFL-01

SFL-02

Control channel number

1

2

Pump

Motor power

KW

2.2

2.2

Max.flowrate

L/min

166

166

Pump pressure

Mpa

0.52

0.52

Proess inlet/outlet (common size)

DN40

DN40

Dimensions (LXWXH)

mm

1115X550X1125

1115X700X1535


Features Of Steam Mold Temperature Machine (Switching Control)

  • Use imported transfer valve

  • The pipeline is made of high-quality sodium, resistance to expansion and contraction

  • High pressure water pump, accurate and fast switching

  • Equipped with communication interface, can undertake future industry 4.0


Steam Mold Temperature Machine (Switching Control) Working Principle


Steam Mold Temperature Machine (Switching Control) Working Principle

Steam Mold Temperature Machine (Switching Control) Gallery

Mold Temperature Controller China
Mold Temperature Controller China
