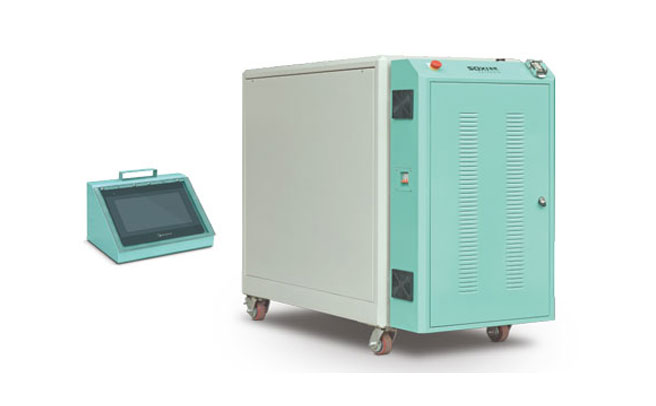

Rapid Heat and Cold High-Gloss Mold Temperature PDF

Rapid Heat and Cold High-Gloss Mold Temperature

Plastic Mold Temperature Controller
Plastic Mold Temperature Controller
Rhcm
Rhcm Molding

The rapid cooling and rapid heating high-gloss mold temperature machine use the rapid switching between normal temperature water and high-temperature steam to achieve rapid temperature changes in different stages of a molding cycle so that the temperature of the mold can meet the molding temperature requirements to the maximum extent, and give full play to the plastic The molding characteristics of the material. It can completely solve the defects of product welding marks, shrinkage, deformation, surface floating fiber, and silver streaks. And can achieve the effect of high gloss and spray-free.

Specification Of Rapid Heat and Cold High-Gloss Mold Temperature


Standard specifications

SFD-80

SFD-100

SFD-120

SFD-140

Heating medium

Water/Steam

Max. process temperature

185℃

Cooling method

Direct cooling

Heater power

KW

80

100

120

140


Coolant Pump

Motor power

KW

2.2

2.2

2.2

2.2

Max.flowrate

L/Min

166

166

166

166

Controller

Temperature control


PID control

Temp.detection method


JIS K

Water supply pump

motor

KW

2.2

2.2

2.2

2.2

Max.flowrate

L/Min

66

66

66

66

Cooling water inlet-outlet of heating system

DN40

DN40

DN40

DN40

Media import and export

DN40

DN40

DN40

DN40

Electric power source Specification

3P 380V 50HZ

Dimensions (LXWXH)

mm

1500X800X1400

Injection molding machine

~350

350~1000

1000~1600

1600~2000

Features Of Rapid Heat and Cold High-Gloss Mold Temperature

  • Able to remove the surface of the product folder waterlines, weld, silver pattern

  • Can solve the problem of surface shrinkage of plastic products

  • The product of the high-gloss surface finish can be a mirror

  • Exempt the product from subsequent fuel injection process, environmental protection, efficient

  • Shortem the product molding cycle

  • Variable temperature 180℃~65℃ control

  • Equipped with communication interface, can undertake future industry 4.0

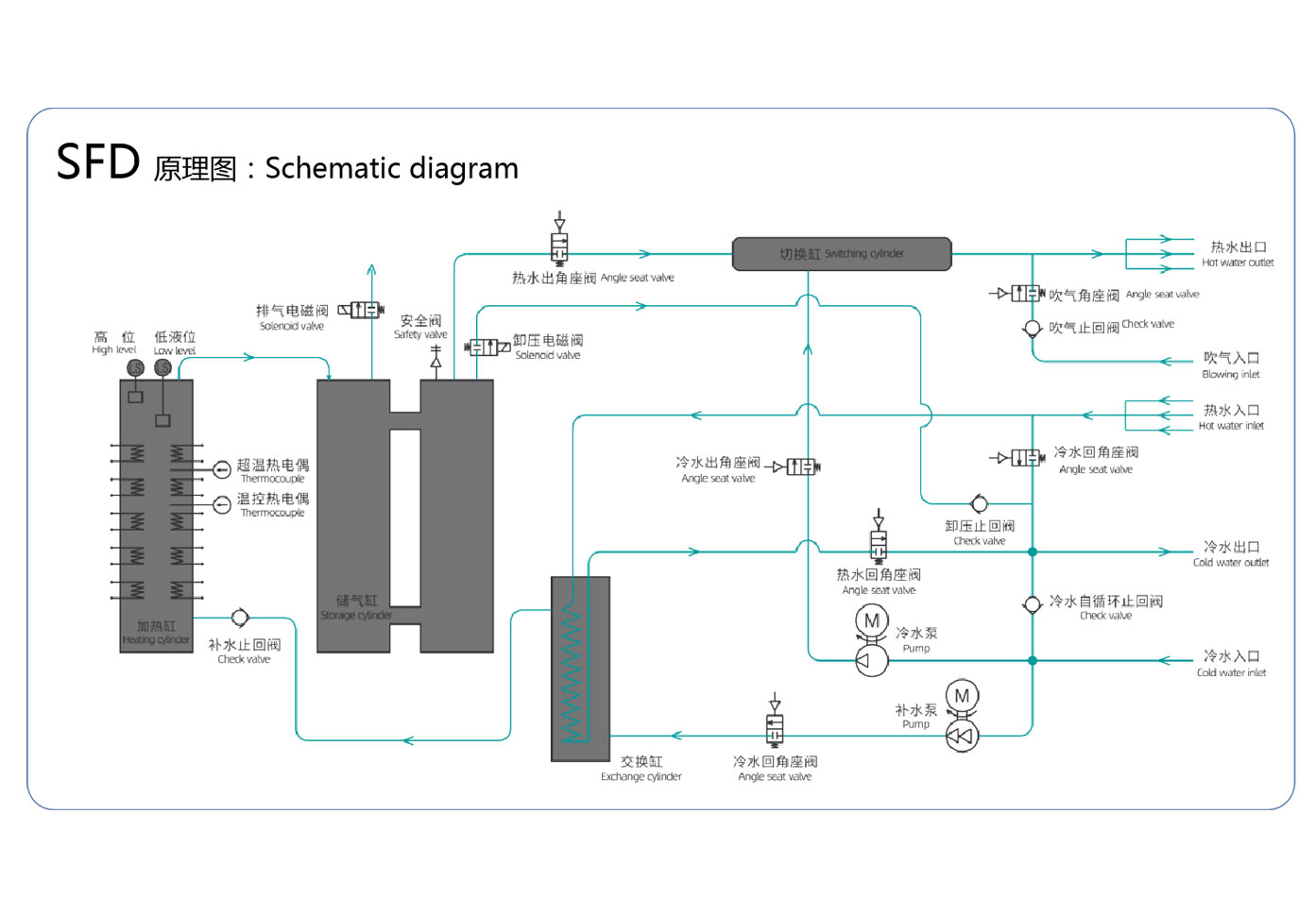

Rapid Heat and Cold High-Gloss Mold Temperature Working Principle


Rapid Heat and Cold High-Gloss Mold Temperature Working Principle

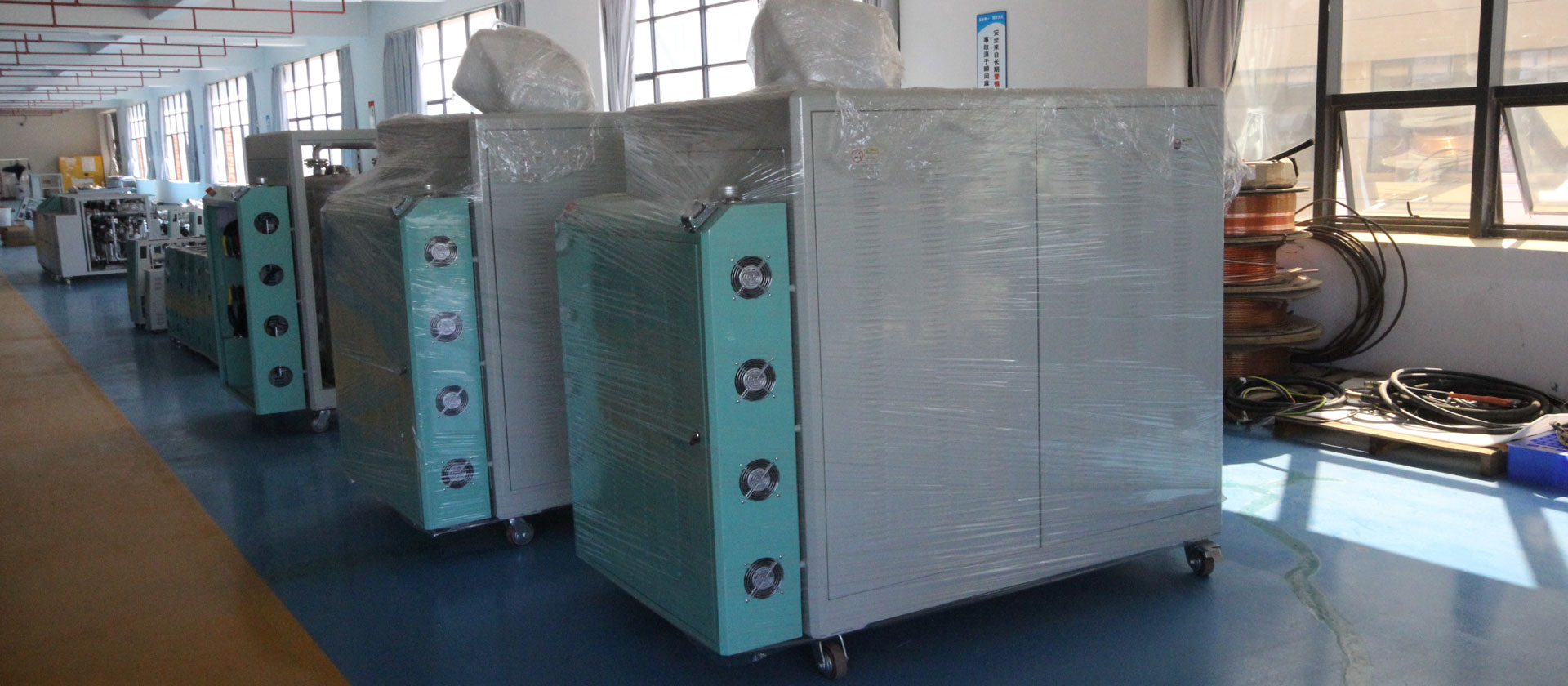

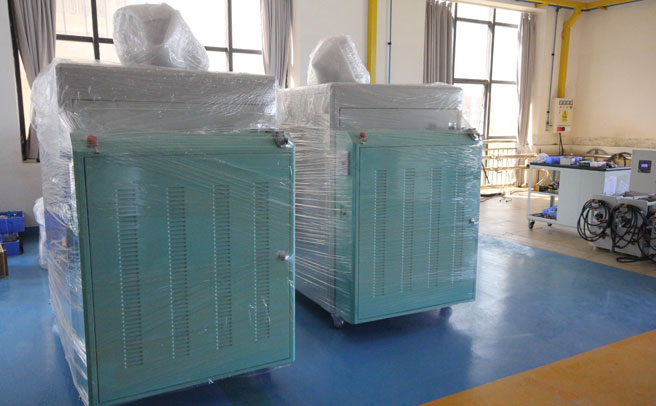

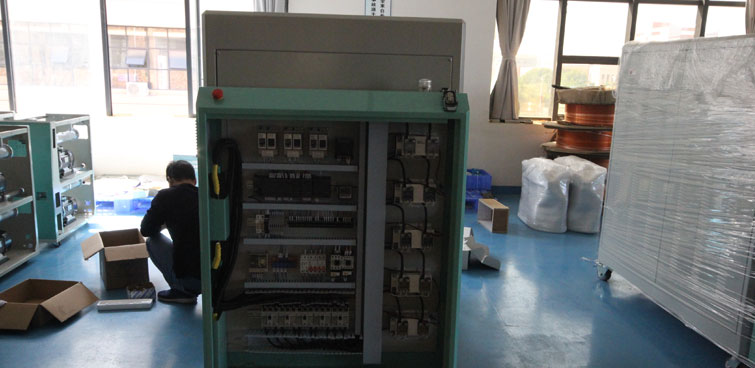

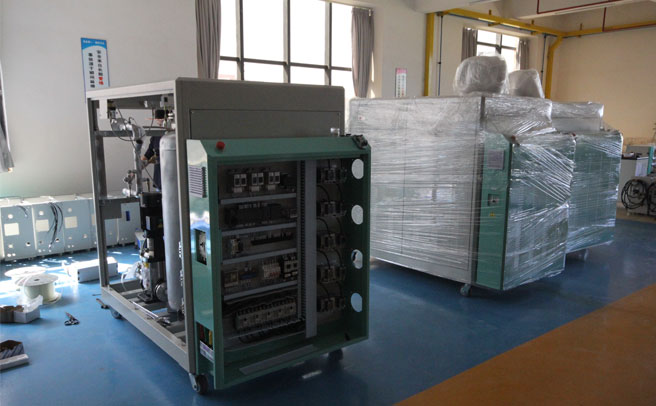

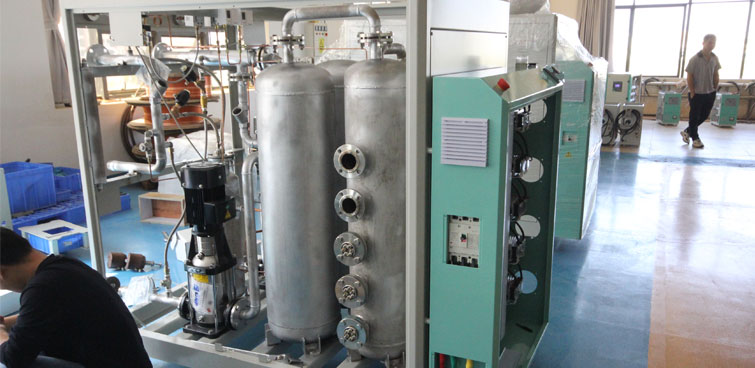

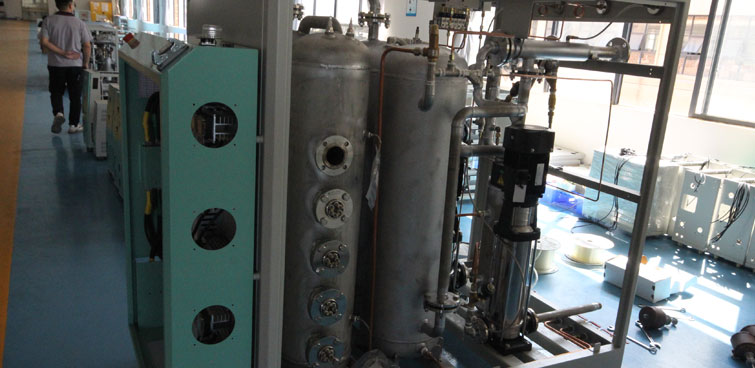

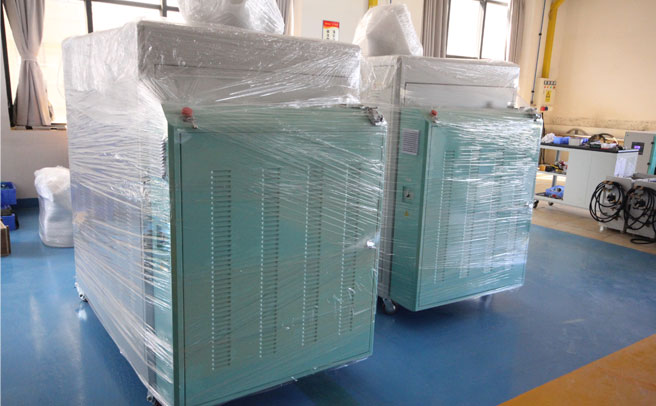

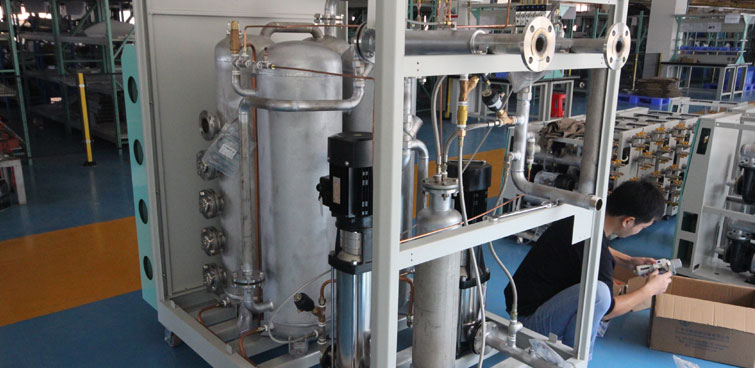

Rapid Heat and Cold High-Gloss Mold Temperature Gallery

Rapid Heat and Cold High-Gloss Mold Temperature Gallery
Rhcm Molding
Plastic Mold Temperature Controller
Rapid Heat and Cold High-Gloss Mold Temperature Gallery
