Reaction Process Machinery Applications
Automotive: steering wheels, armrests, and other interior trim parts, flexible foams. High and low-density rigid foams and PU composites
As a system provider, KraussMaffei uses its Reaction Process Machinery business unit to provide molds and trimmer technology as well as process and system solutions for manufacturing innovative components made from polyurethane or other reactive materials.

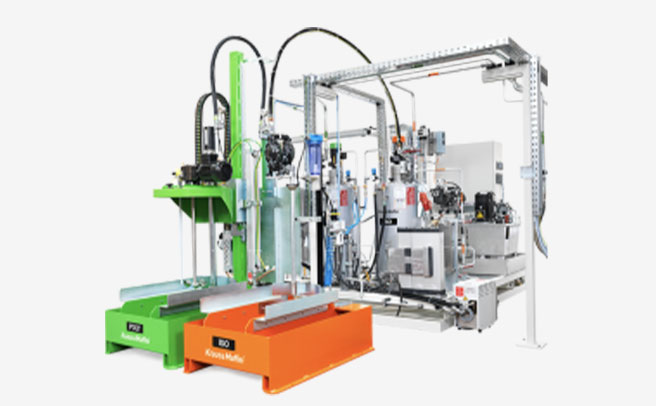

KraussMaffei provides a comprehensive product portfolio of machines and systems for PU processing in reaction process machinery. Mixing heads and dosing machines, presses, die cutters, flexible cutting systems, and foaming tools as well as machines and systems for insulation applications provide the basis for a broad spectrum of applications. The Automotive Component Systems area supplies the complete product line for trimmer and mold technology for polyurethane components; Automotive Testing rounds out the product portfolio and works as a service provider in the area of climate-related and mechanical testing of components.
Standard specifications | SX-05 | SX-15 | SX-25 | SX-50 | SX-75 | SX-100 | SX-150 | SX-200 | SX-300 | SX-400 | ||
Injection molding machine | tf | ~20 | 20~50 | 50~75 | 75~150 | 150~200 | 200~300 | 300~450 | 450~650 | 650~800 | 800~1200 | |
Drying capability(when PC is dried) | kg/h | 1.6 | 5 | 9.2 | 17.2 | 25 | 35 | 53 | 66 | 100 | 133 | |
Max. process temperature | ℃ | 180 | ||||||||||
Hopper capacity | L(kg) | 8(5) | 25(15) | 42(25) | 85(50) | 125(75) | 170(100) | 250(150) | 335 (200) | 500(300) | 670(400) | |
Cirulating air volume | m/h | 5 | 15 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | |
Dew point | ℃ | ‘-40~-50 | ||||||||||
Compressed air | Required pressure | Mpa | 0.7 | |||||||||
consumption | L/Min | 65 | 80 | 100 | 120 | 130 | 140 | 150 | 160 | 180 | 200 | |
Compressor power consumption | kw | 0.4 | 0.6 | 0.75 | 0.9 | 1 | 1.1 | 1.15 | 1.25 | 1.4 | 1.5 | |
Electric power | Total power | kw | 1.73 | 3.12 | 4.65 | 5.65 | 5.65 | 7.25 | 9.6 | 13.7 | 17.4 | 21.75 |
Heater power | kw | 1 | 2 | 3 | 4 | 4 | 5 | 7 | 10 | 14 | 18 | |
Air circulation blower power | kw | 0.18 | 0.37 | 0.55 | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 | 0.4 | 0.75 | |
Feeding blower | kw | 0.55 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 3 | |
Electric power source specification | 380V 50Hz 3P | |||||||||||
Dimensions(LXWXH) | mm | 720X405X1460 | 830X650X1720 | 830X650X1720 | 930X710X2100 | 930X710X2100 | 965x755x2150 | 1145x930x2670 | 1145X945x2670 | 1400x1500x2900 | 1450X1500x2900 |
2 components

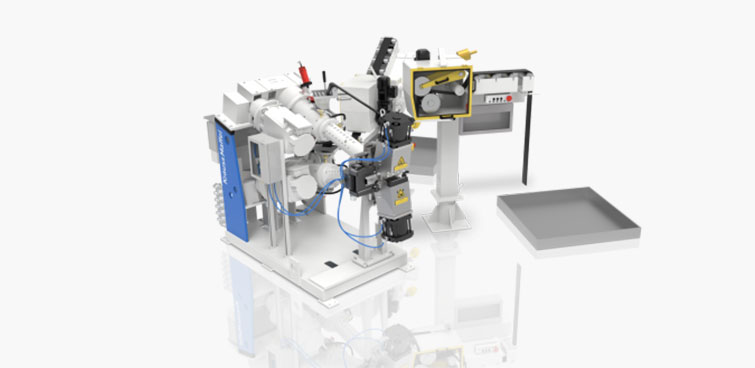

The first mixing head in the market with L shaped mixing chamber
13 variants available depending on:
Flowrate (diameter of self-cleaning piston:
from 7 to 32 mm; stroke of self-cleaning piston)
Color
Third stream (additive or other)
Automotive: steering wheels, armrests, and other interior trim parts, flexible foams. High and low-density rigid foams and PU composites
Image courtesy of kraussmaffei, we are authorized agent of this product.
